INCH-POUND
MIL-DTL-10911/8C
20 November 2012
SUPERSEDING
MIL-L-10911/8B
17 March 1995
DETAIL SPECIFICATION SHEET
LOUDSPEAKER, PERMANENT MAGNET,
(UNENCASED, 4-INCH DIAMETER CONE)
Inactive for new design after March 30, 1999.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-10911.
Inches
mm
.015
.38
.031
.79
(SEE
.078
1.98
NOTE 4)
.125
3.18
.187
4.75
.251
6.38
.343
8.71
.687
17.45
.781
19.84
1.000
25.40
1.562
39.67
1.656
42.06
1.875
47.63
2.281
57.94
3.312
84.12
4.062
103.17
SQUARE
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Tolerances are ± .005 (0.13 mm) for three place decimals and ± .02 (0.51 mm) for two place decimals.
4. All Part or Identifying Numbers (PIN) shall be as specified in MIL-DTL-10911.

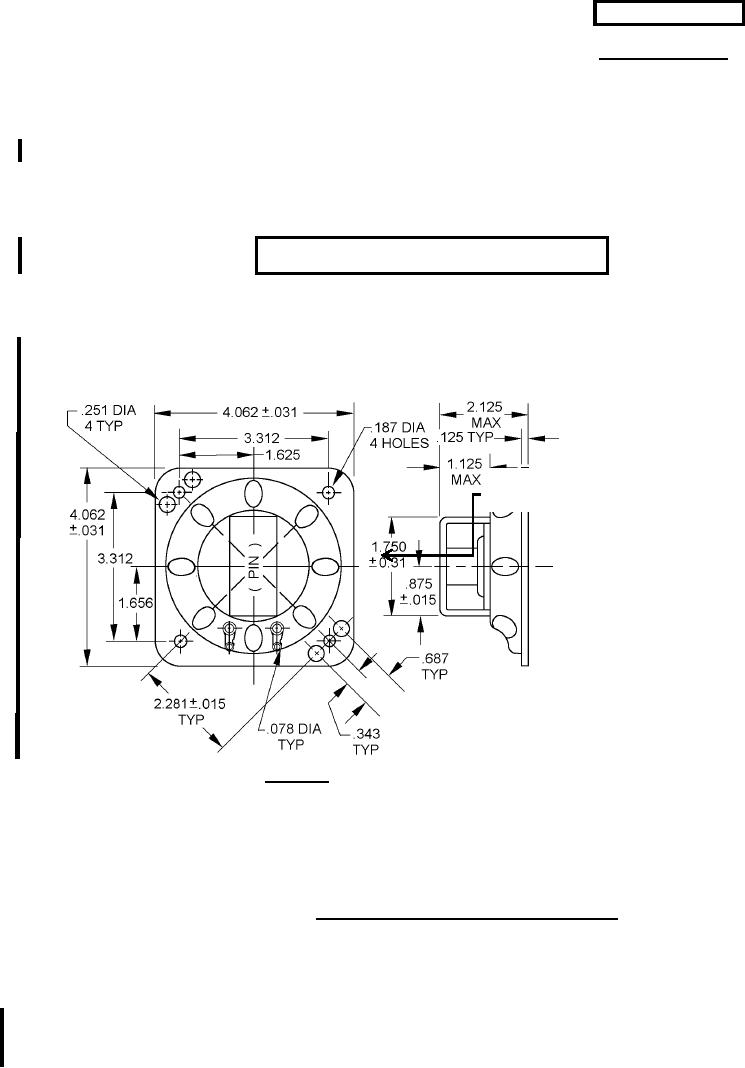

FIGURE 1. Loudspeaker M10911/8-01 and M10911/8-02.
AMSC N/A
FSC 5965
