MIL-DTL-55535A

NOTES:

1. Minimum sensitivity at 1 KHz: 103 dB minimum.

2. Impedance: 15 Ohms.

3. Sensitivity Reference: 0 dB =20 �Pa (micro-Pascal).

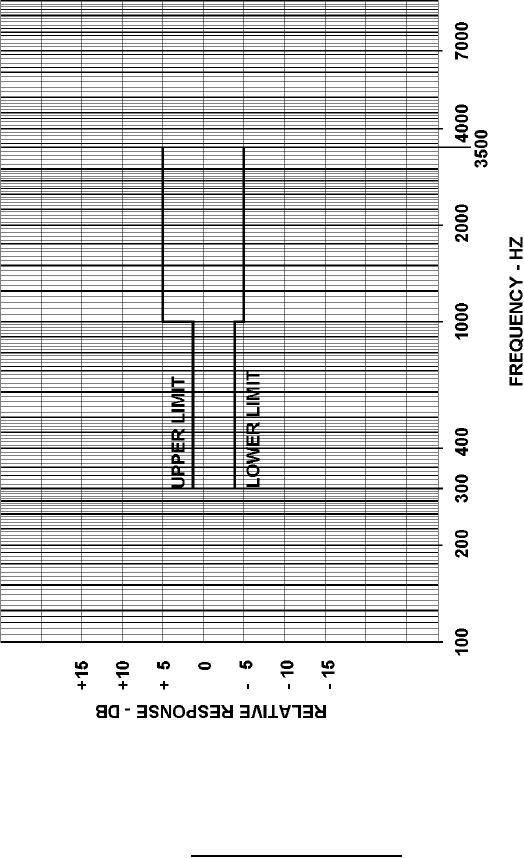

FIGURE 2. Earphone response limit curves.
