MIL-DTL-5794C
Inches
mm
.015
0.38
.250
6.35
1.000
25.40
5.310
134.87
6.38
162.05
7.000
177.80
7.500
190.50
9.19
233.43
11.00
279.40
15.38
390.65
16.00
406.40
27.00
685.80
NOTES:
1. Dimensions are in inches, tolerances ± .015 unless otherwise noted.
2. Metric equivalents are given for information only.
3. All acoustic damping material will be equivalent to or better than Akoustikos felt and Acoustic-
celotex.

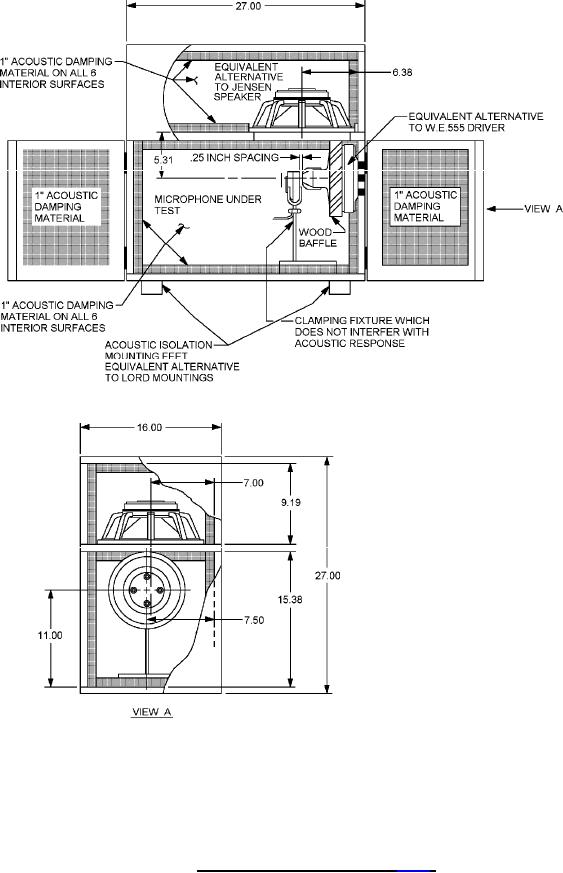

FIGURE 6. Signal-to-noise ratio test (see 4.6.4).
