MIL-DTL-5794C
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.005
0.13
.062
1.57
.406
10.31
.625
15.88
.015
0.38
.078
1.98
.416
10.57
.630
16.00
.016
0.41
.080
2.03
.47
11.94
.760
19.30
.020
0.51
.086
2.18
.48
12.19
.843
21.41
.024
0.61
.096
2.44
.515
13.08
1.031
26.19
.031
0.79
.13
3.30
.52
13.21
1.097
27.86
.055
1.40
.16
4.06
.53
13.46
1.109
28.17
.060
1.52
.33
8.38
.59
14.99
1.187
30.15
1.25
31.75
NOTES:
1. Dimensions are in inches. Tolerances are ± .015 inch for two place (.XX), ± .005 inch for three
place (.XXX) dimensions, and ± 1 degree for angles.
2. Metric equivalents are given for information only.
3. Characters and markings shall be for identification in accordance with MIL-STD-130 and meet the
test requirements of MIL-STD-13231.

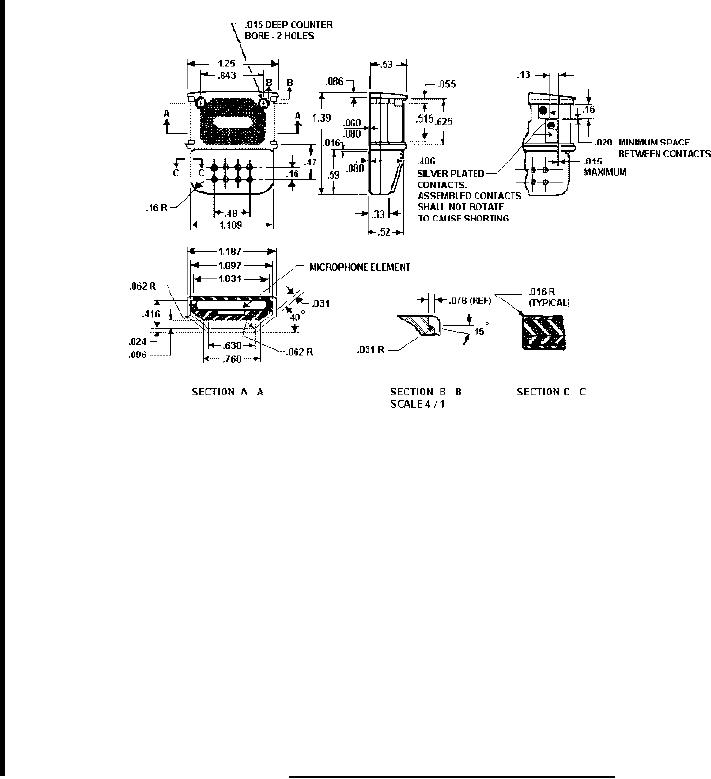

FIGURE 2. Microphone, carbon M-51/UR outline dimensions.
6
