MIL-PRF-26542/7B
Inches
mm
Inches
mm
.015
0.38
.1875
4.76
.020
0.51
.220
5.59
.0625
1.59
.500
12.70
.125
3.18
23.250 590.55
NOTES:
1. Heat shrink item 2 on item 1, then heat shrink item 3 onto item 2. Caution: Do not heat shrink item 2
and 3 at the same time.
2. Attach stay cord terminal, as close as possible to end of outer jacket.
3. Dimensions are in inches. Unless otherwise specified, tolerances are ± .015 inch.
4. Metric equivalents are given for general information only.

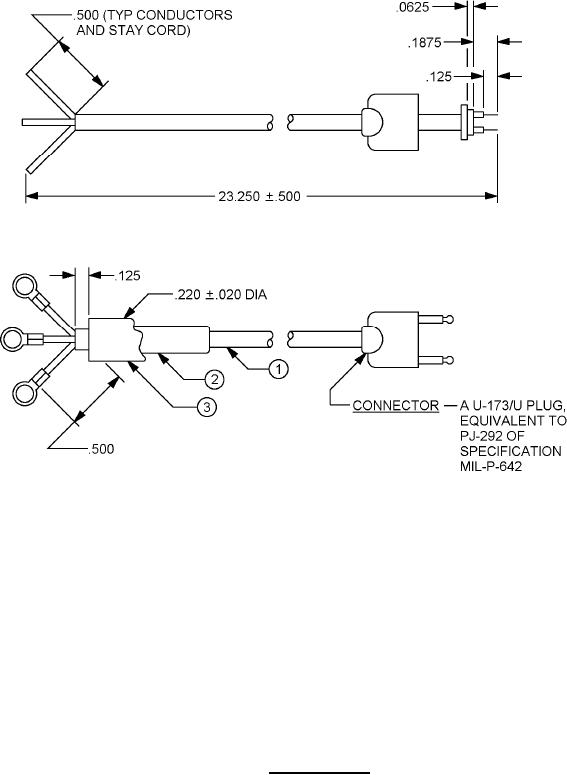

FIGURE 3. Cord assembly.
4
