A-A-55568/1B
NOTES:
1. Earphone alternate designs are shown only for information the finished earphone design is to the manufacturers'
headset-microphone configuration.
2. When supplied with a 4 contact connector the complete assembly consists of upper and lower sub-assemblies.

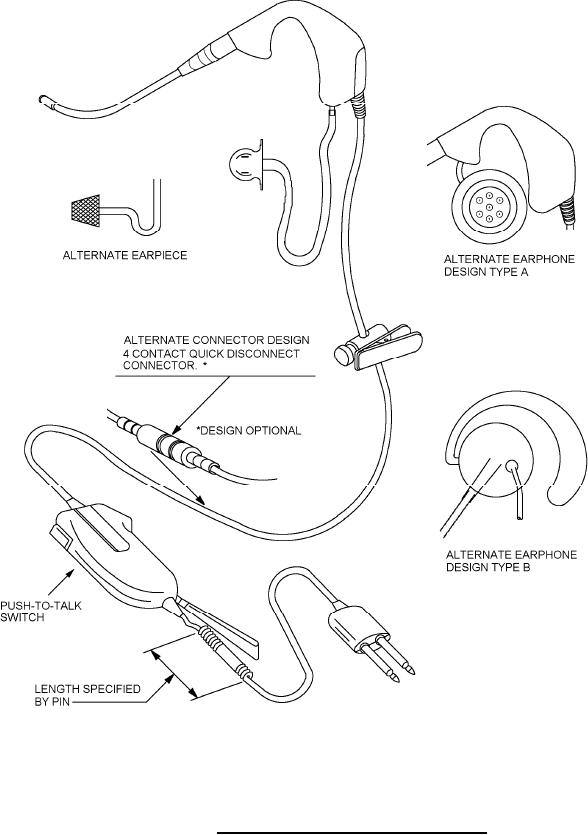

FIGURE 1. Amplified headset-microphone configurations.
