MIL-DTL-11193 Microphone, Carbon \(Microphone M-29\( \)/U And M-52\( \)/U\)This specification covers two types of hand-held, noise-canceling microphone with an impedance of 40 to 100 ohms, designated as Microphone M-29\( \)/U and Microphone M-52\( \)/U \(see 6.3\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


MIL-DTL-11193E
NOTE: Part number SC-B-68419-1 is referenced on drawing SC-B-68419, part number SC-B-68422-1 is referenced
on drawing SC-B-68422 and part number SC-D-74472-1 is referenced on drawing SC-D-74472.

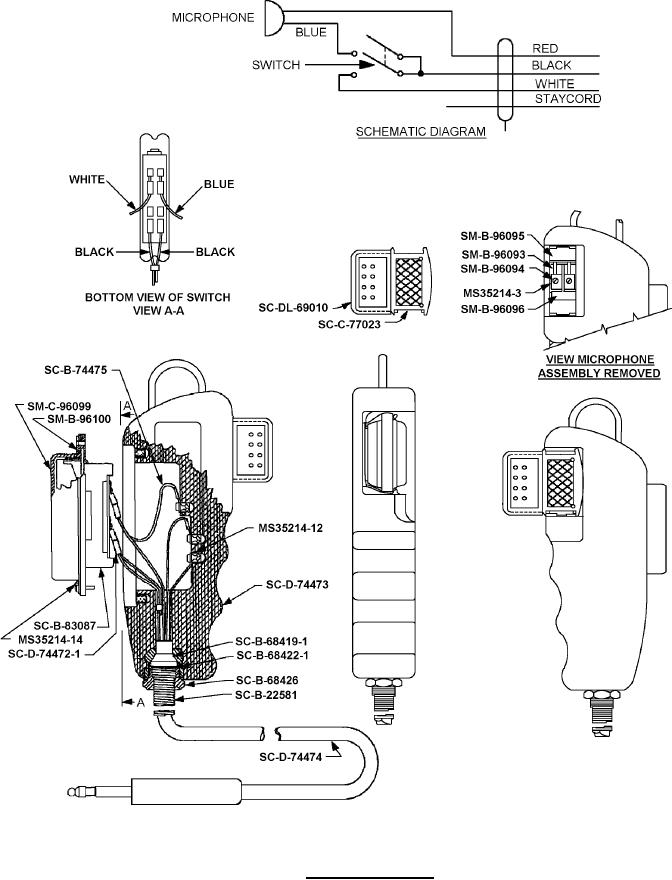

FIGURE 2. Microphone M-52A/U.
6
