3-01This specification covers 2 \(two\) hand-held Dynamic Microphones, with or without a self-contained transistor amplifier and different connectors for use in unique military equipment. A wall-mounted holder is also included.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10

MIL-DTL-21393B

NOTES:

1. All dimensions are in

inches, tolerances � .015

unless otherwise noted.

2. Metric equivalents are

given for information only.

Inches

.015

0.38

.250

6.35

1.000

25.40

5.310

134.87

6.38

162.05

7.000

177.80

7.500

190.50

9.19

233.43

11.00

279.40

15.38

390.65

16.00

406.40

27.00

685.80

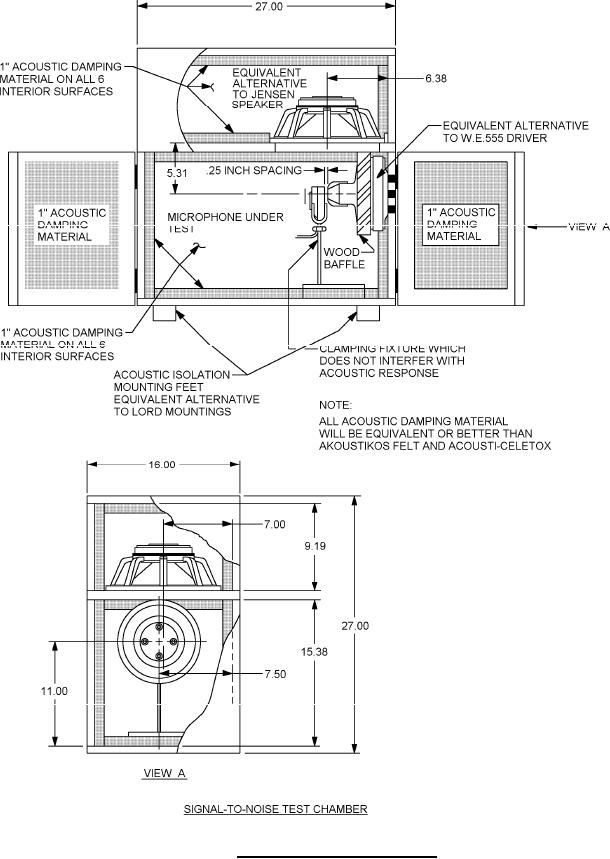

FIGURE 3. Signal-to-noise test apparatus.
