INCH-POUND
MIL-DTL-24223/4B(SH)
28 January 2014
SUPERSEDING
MIL-L-24223/4A(SH)
22 October 1986
DETAIL SPECIFICATION SHEET
LOUDSPEAKER, SHIPBOARD ANNOUNCING SYSTEMS
ENCASED, HIGH POWER, ROTATIONAL, 70 VOLT, 250 VOLT-AMPERES
Reinstated after 28 January 2014 and may be used for
new and existing designs and acquisitions.
This specification is approved for use within the Naval Sea Systems Command, Department of the Navy, and is
available for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-24223.
4 HOLES - 9/16 ±0.005 DIA.
HOLE FOR
CABLE
1 1/2 ±0.010 DIA. HOLE
3
9 5/16 ±0.005 R.
MAXIMUM OVERALL
HEIGHT - 20
WIDTH - 22
DEPTH - 23
WT. - 250 LBS.
ALL DIMENSIONS SHOULD BE MEASURED IN INCHES

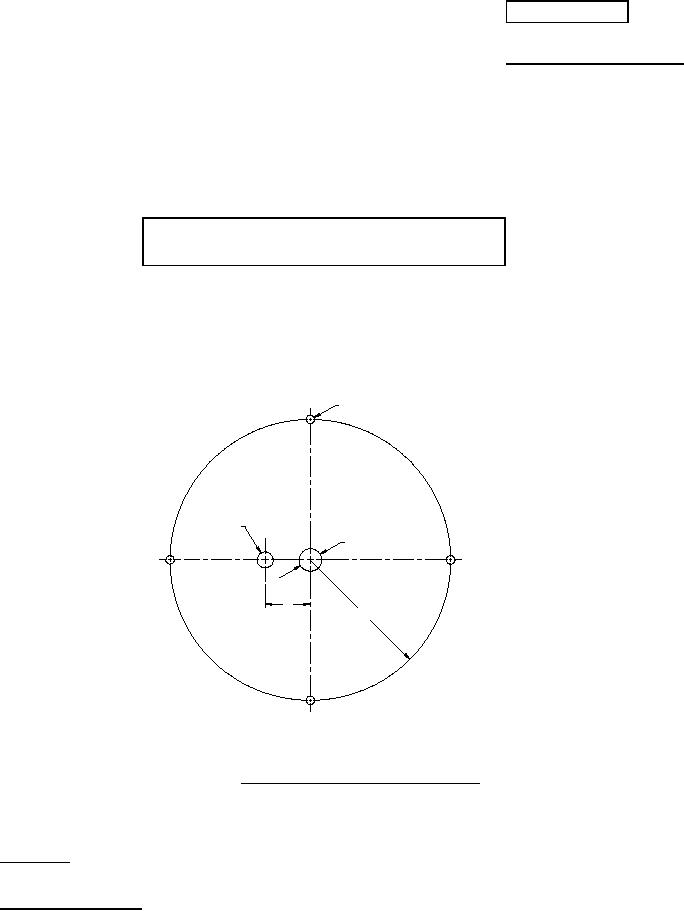

FIGURE 1. Mounting dimensions for LS 397()/SIC.
PHYSICAL REQUIREMENTS:
Description: The type LS-397()/SIC loudspeaker shall be designed for mast or deck mounting. The
loudspeaker shall have a rotatable base, enabling the sound to be transmitted in any direction in the horizontal plane.
Dimensions and weight: See FIGURE 1.
