MIL-DTL-12606 Loudspeaker, Permanent Magnet \(Unencased, 3-Inch And 4-Inch Diameter Cone, 2-Watt; Fungus-, And Immersion-Resistant\), Type Ls-445/U, M12606-01, And M12606-02This specification covers type LS-445/U, M12606-01 and M12606-02, unencased, permanent magnet loudspeakers with a 2-watt normal \(4-watt peak\) input. These loudspeakers are fungus-, and immersion-resistant, and have a voice coil impedance of 8 ?? 1 ohms. The cone and spider are made of polyamide-based phenolic material \(see 6.1\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24


MIL-DTL-12606E

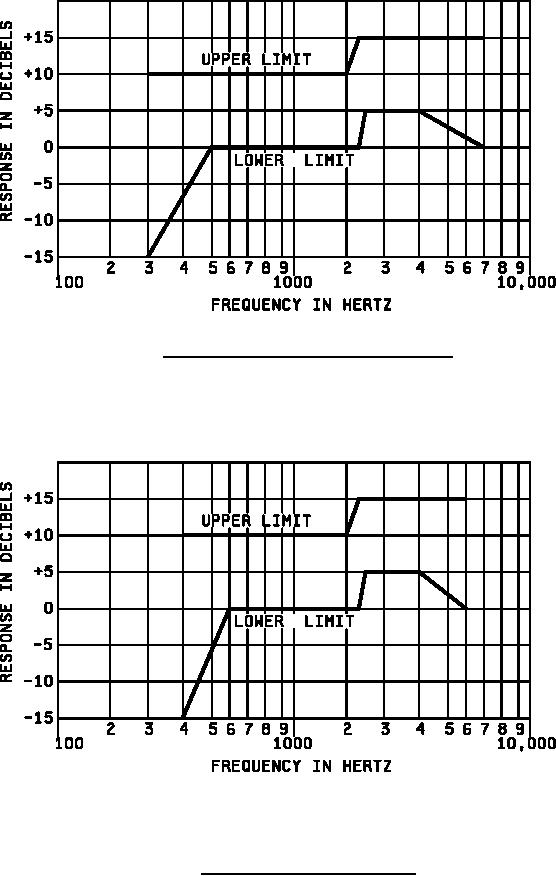

FIGURE 4. Frequency response limits for LS-445/U and M12606-02.
FIGURE 5. Frequency response limits for M12606-01.
8
